Deluxe Forward Controls for 00-05 FXST
|
|||||
|
|||||
- Description
- Request Information
- Send to a Friend

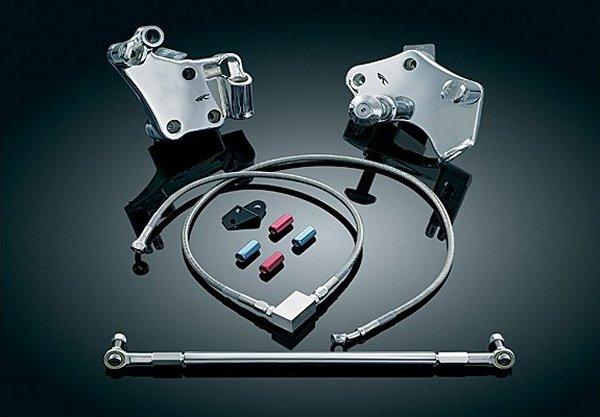

If you're a little taller than average and ride an FXST model, Kuryakyn has extended forward controls for you.
This beautifully sculpted, investment cast mounting plates are nicely polished and chrome plated. The kit reuses the stock shift lever, splined shift shaft, brake pedal, and master cylinder.
Includes an extended length braided stainless brake line and all necessary hardware.
Accepts any H-D style male mount pegs, sold separately.
Included Items:
1. (1) Brake mount
2. (1) Brake plate
3. (1) Right peg mount
4. (1) 3/8"-16 x 1 1/2" shcs left hand thread
5. (1) 3/8" split lock washers
6. (1) Shift mount
7. (1) Shift plate
8. (1) Left peg mount
9. (1) 3/8"-16 x 1 1/2" shcs
10. (1) 3/8" split lock washer
11. (2) Bushings 9/16" ID x 21/32 OD x 5/8" high
12. (1) Brake arm pivot
13. (1) 9060 brake line
14. (4) 3/8" x 9/16" aluminum crush washer
15. (3/8"-16 x 1 1/4" SHCS
15. (2) 3/8"-16 x 1 1/2" SHCS
16.(1) 3/8-16 x 1 1/2" SHCS left hand thread
17. (1) 5/16"-18 x 1 1/4" PSCS
18. (1) 5/16"-18 x 3/8" set screw
19. (2) 3/8" split lock washer
20. (1) 3/4"-16 x 27-64" Jam nut
21. (2) O-ring .62 ID x .82 OD x .100 thick
22. (2) O-ring .56 ID x .76 OD x .100 thick
23. (1) Brake arm cap
24. (1) Instructions
